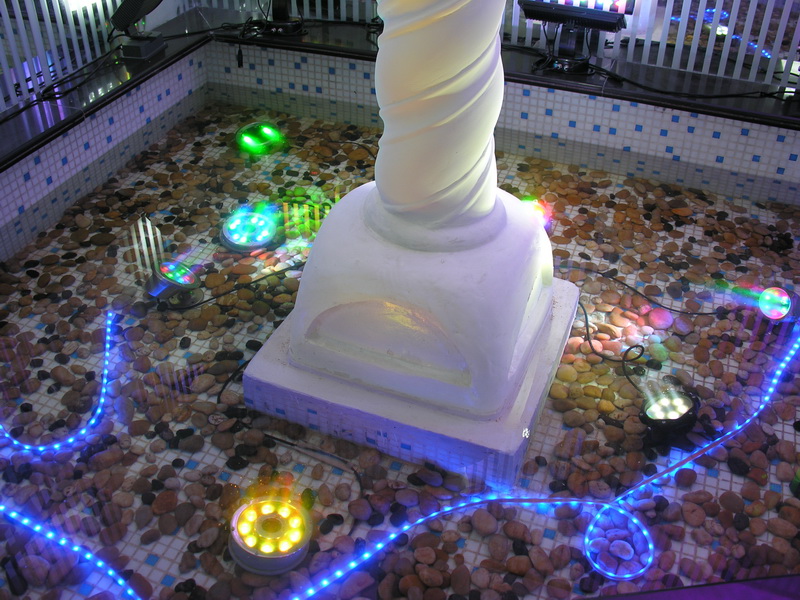

UnderWater LED Lights
Another View
Yet Another View
Have Case Will Travel!
Linear 1 watt Aluminum RGB Uplighting Strips
Flexible SMD Strips in White Color
Spectral Graph
A Look inside an Integrating Sphere
Integrating Sphere
LED "Neon Replacement Tubes"
Different Diameter tubes are available.
ENDOR Star with 3 Luxeon Rebel 1 watt emitters
Endor Star closer view.
Running at low power to show detail.
Close up View
Tri color Endor Star
Flexible SMD Strip in cool white
SMD LED Strip
Incredibly bright Flexible SMD Strip
Closeup View of the Encapsulation
Cut at Every third Chip Minimum
Closeup of a potential minimum length Unit
Rigid LED Light Bar
Rigid LED Strip
Rigid LED Bar
Rigid SMD Strip
RGB Flexible SMD Strip
RGB SMD Strip
RGB SMD Strip
RGB SMD Strip
3in1 3 watt Emitter
3in1 3 watt Emitter
3in1 3 watt Emitter
3in1 3 watt Emitter
IP68 Ratings are avaialbe for submersion up to 3 meters!
Yes it's possible!
Reminds me of the old neon salesman. Door to Door?
Courtesy of CREP-LED Shenzhen, China
One of the most versatile lighting elements available today. Very energy efficient, around 12 watts per meter.
The display is showing the spectral output from 5050 cool white Epistar chips. Testing Courtesy of Crep-LED.
This one is 1.5 meters in diameter.
This device measures total light output, CCT, color corrected temperature and the composition of the visible spectrum.
These can be either fixed monocolor or full color changing DMX-512 style. They can even be used as low resolution video displays.
The Star aluminum base acts as a transitional heatsink to another heat sinking member. This particular configuration produces 540 lumens @ 700 ma, 3.3 VDC per junction.
Driven at 350 ma, still very bright.
Notice the current limiting resistor.
This unit is fully RGB capable with three 1 watt junctions
These are Epistar SMD (Surface Mount Devices) with a 120 degree beamspread. This is one of the most versatile light sources available.
This strip is cuttable at every third LED to enable field installation adjustibility by soldering in some jumpers across the pads.
Just imagine the applications this product makes possible!
Clear PVC encapsultion makes it water proof and it can be made to IP 68 standard, 3 meter submersible.
The total lentgth after cutting is about 48 mm with three chips.
Shown wth a 48 watt power supply that can drive four of these strips, in series or in parallel. Each rigid aluminum extruded strip is 600 mm (24") long and contains 57- Epistar 5050 SMD LED chips.
Produces 480 Lumens. Great for outdoor patio applications. The light output contains no UV so it will not attract mosquitoes and some other flying pests.
Very tight spacing of the LED's
Very even 120 degree beamspread that is almost completely uniform.
Multi-color chasing is possible with this SMD strip. Each chip has it's own address decoder built in. The only such unit in the world and is patented. You can make full video screens with these strips (in 3D if you like) and very little other hardware.
Shown in Red
Shown in Blue
Produces a very good white color.
Capable of any color
Shown in Green
Shown in Red
Closeup shown on finned heatsink. Requires active cooling
.
|
UnderWater LED Lights
IP68 Ratings are avaialbe for submersion up to 3 meters!
